Description

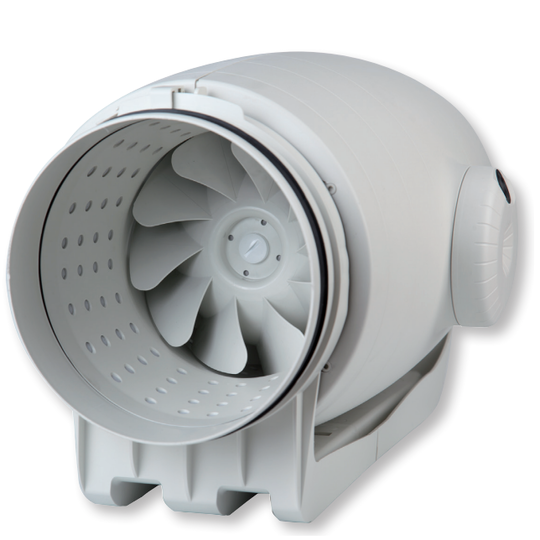

Low profile “Mixed-flow” fan with soundabsorbent insulation. Extremely quiet.

Certified of Approval by the Noise Abatement Society.

Manufactured in plastic material, with a specifically designed internal skin to direct the sound waves at the right angle for them to be captured by the sound-absorbent material.

Fitted with rubber gaskets on the inlet and outlet to absorb vibrations, a body that can be dismantled.

Connection box can be rotated 360º, to facilitate easy connection of the power cable.

Motors Speed controlable 230V-50Hz motor. IP44. Motor is class B, with ball bearings and safety thermal overload protection.

The model offers solutions to ventilation problems, especially in places where people work and low sound level is required.

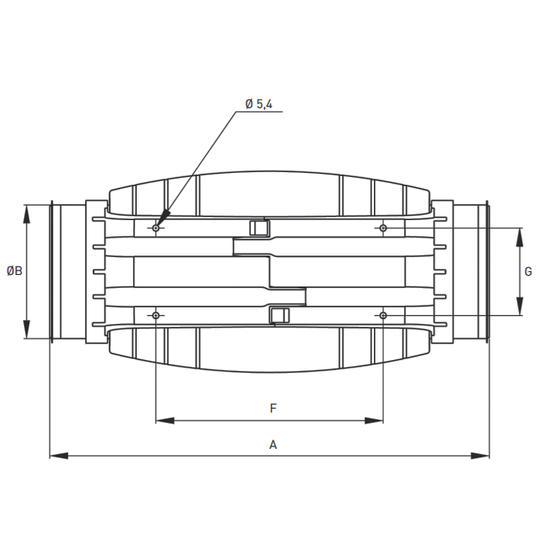

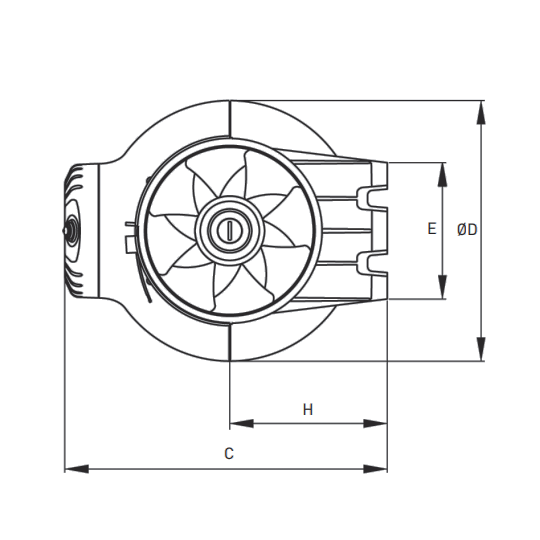

Dimensions:

A: 568mm

B: 198mm

C: 327mm

ØD: 264mm

E: 145mm

F: 340mm

G: 129mm

H: 164mm

5-year warranty
